5.0 Virtual Memory
Definitions:
Ø
The main memory can act as a “chche” for the secondary storage,usually
implemented with magnetic disks.
Two
major motivations :
i.
Efficient and safe sharing
of main
memory among multiple programs.
ii.
Remove the programming burdens of a small, limited amount of main memory.
Ø Large
virtual address space
·
Mapping mechanism to
physical main memory.
ü E.g.
64 bit virtual address space.
ü Smaller
physical address – 36-40 bits common now.
Ø Multiple
process management
·
Each process has a “private” and “protected” virtual address space.
ü But
share physical memory (caches and main memory.
ü Trick
is how to manage this private/protected illusion so it’s true.
ü For
caches – virtual indexed and tagged via address spaces.
Ø Between
DRAM and disk
·
Miss becomes a page or
TLB fault.
ü TLB
is just a chche of recently used page table entries .
·
Block becomes a page or
segment.
Ø The
hardware ensures that one process cannot access the memory of a different
process.
Basic
Issues in Virtual Memory
v Size of data blocks that are transferred from disk to main
memory.
v Which region of memory to hold new
block.
=> placement policy
v When memory is full, then some region
of memory must be released to make room for the new block .
=> replacement
policy
v When to fetch missing items from
disk?
– Fetch only on a fault => demand load policy
Disk & Real
Memories
Ø Main
memory (physical memory) can act as a cache for the secondary storage (disk).
·
A virtual memory block
is called a page, and
·
A virtual memory miss
is called a page fault.
Page
fault – An event that occurs when an accessed page is not present in main
memory.
Ø This
process is called address mapping or address translation.
Virtual
translation –Also called address mapping. The process by which a virtual
address is mapped to an address used to access memory.
Ø Advantages:
·
Illusion of having more
and contiguous physical memory.
·
Program relocation by
“pages”.
·
Protection in
multiprogramming.
Address Translation
Ø Page table is lookup table for mapping virtual page # to physical
address.
Ø Located in memory.
Ø Each instruction execution refers to memory _ 1.35 times, so PT is
in cache, called translation lookaside buffer (TLB).
Ø The
address is broken into a virtual page number and a page
offset.
Ø The
translation of the virtual page number to a physical page number.
Ø The
physical page number constitutes the upper portion of the physical address.
§ While
the pages offset, which is not changed, constitutes the lower portion.
Ø Having
a larger number of virtual pages than physical pages
§ the
basis for the illusion of an essentially unbounded amount of virtual memory.
Address Translation
Cache: TLB
Ø Traditionally
referred to as a translation-lookaside buffer (TLB).
Ø Some typical valus for a TLB might be
§ TLB size: 16 – 512 entries
§ Block size: 1 – 2 page table entries (typically 4-8bytes each)
§ Hit time: 0.5 – 1 clock cycle
§ Miss penalty: 10 – 100 clock cycles
§ Miss rate: 0.01% - 1%
Ø The TLB has many fewer entries than the number of pages in main
memory, TLB misses will be much more frequent than true pages faults.
Ø TLB misses can be handled either in hardware or in software.
Implementing Protection
with Virtual Memory
Ø To
allow sharing of a single main memory by multiple processes.
·
While providing memory
protection among these processes and the operating system.
Ø The
hardware must provide at least the three basic capabilities summarized .
I.
Supervisor
process,kernel process, or an executive process.
·
Supervisor mode - called kernel mode. A mode indicating that a
running process is an operation system process.
II.
The includes the
user/supervisor mode bit, which dicates whether the processor is in
user/supervisor mode, the page table pointer, and the TLB.
III.
Typically accomplished
by a system call exception,implemented as a special instruction that transfers
control to a dedicated location in supervisor code space.
·
System call – a special
instruction that transfers control from user mode to a dedicated location in
supervisor code space, invoking the exception mechanism in the process.
Handling TLB Misses and
Page Faults
Ø The
translation of virtual to physical address with a TLB is straight forward when
we get a TLB hit, handling TLB misses and page faults is more complex.
Ø TLB
miss occurs when no entry in the TLB matches a virtual address.
Ø TLB
miss can indicate one of two possibilities:
a) The page is present in memory, and create the
missing TLB entry.
b) The
page is not present in memory,and need to transfer control to the operating
system to deal with a page fault.
Ø Prevent
the write into memory from actually completing when there is a page fault
·
Usually done by
deasserting the write control line to the memory.
MIPS control registers

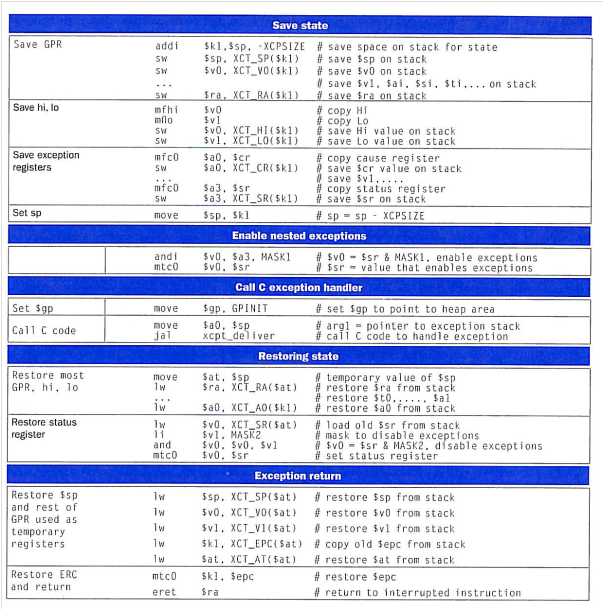

MIPS code to save and
restore on an exception
Ø The
simplified version assumes that the stack pointer (sp) is valid.
Ø To
avoid the problem of a page fault during this low-level exception code,MIPS
sets aside a portion of its address space that cannot have page faults,called unmapped.
§ Unmapped
– A portion of the address space that cannot have page faults.
Ø The
operating system places the exception entry point code and exception stack is
unmapped memory.
§ MIPS
hardware translates virtual address 8000 0000hex to BFFF FFFFhex
to physical addresses simply by ignoring the upper bits of the virtual
address,thereby placing these addresses in the low part of physical memory.
Ø The
operation system places exception entry points and exception stacks in unmapped
memory.
MIPS code to save and
restore on an exception
Paging
& Segmentation
Paging
§ Fixed
sized blocks. Address map contains base address.
§ Simple
replacement strategy (all blocks the same size)
§ Internal
fragmentation (not all addresses of a page are used)
§ One
(or very few) page tables per process – difficult to share segments of program.
Segmentation
·
Variable sized blocks. Address maps
contain base address and length.
·
Complex replacement (may be difficult to
find space of right size in memory)
·
External fragmentation (holes created in
main memory because of difficulties in allocation and replacement)
·
Many segments per process – easy to
share components of a program.
·
Segment table :
ü Segment
– offset in segment table
ü Pointer
to head of segment table required
·
Lots of segments – bigger segment table
required.
Summary
·
Virtual memory is used for relocatability & protection.
·
Virtual memory supports
sharing of the main memory among multiple, simulataneously active processes, in
a protected manner.
·
Page Tables are used for
virtual to real page address translation
·
Page tables map virtual address to
physical address.
·
TLBs are
caches for PT.
·
TLBs are important for fast translation.
·
TLB misses are
significant in processor performance.
·
The more complex
solution to reducing TLB misses is to re-examine the algorithm and data
structures to reduce the working set of pages.
§ Given
the importance of memory accesses to performance and the frequency of TLB
misses ,some programs with large working sets have been redesigned with that
goal.
·
Bottom level of memory hierarchy for programs.
·
Used in all general-purpose architectures.
Referenced by
3)
http://www.csie.nuk.edu.tw/~kcf/course/ComputerOrganization/ComputerOrganization_Chapter7_Memory.pdf
Written by,
YAU KAI SHI
B031210077
B031210077
