Operations
of The Computer Hardware
- Every computer must be able to perform
arithmetic. Here, MIPS instruction set is used as example.
- MIPS assembly language notation:
add a, b, c # a = b + c (in c code) ** all arithmetic operations have this form.
- The words to the right of the # symbol
is meant for human reader(or known as comment), the computer will ignore them.
- This language(MIPS) can contain at most
one instruction, and must exactly three operand.
Example 1:
- In
C code, given, a= b + c + d + e.
- In
MIPS, is written as:
add
a, b, c # sum of b and c is placed
in a.
add
a, a, d #sum of b, c, and d is
placed in a
add
a, a, e #sum of b, c, d, and e is
placed in a
Example 2:
·
Given in C code, f = (g+h)-(i+j)
·
Then, in MIPS compiled code :
add
t0, g, h # temp t0 = g + h
add
t1, i, j # temp t1 = I + j
sub
f, t0, t1 # f = t0 – t1
- This shows that the MIPS language will
only do one process in a time.
·
This situation illustrates the first of
four underlying principles of hardware design:
-
Design principle 1: simplicity favors regularity.
Operands
of Computer hardware
Register
operand
·
Operand of arithmetic instruction of
MIPS must be from a limited number of special locations built directly in
hardware, called registers.
·
Registers are primitives used in hardware
design that are also visible to the programmer when the computer is completed.
·
The size of a register in MIPS
architecture is 32 bits, they are given name, word.
·
The difference between the variables of
a programming language and registers is limited number of registers, that is
32, as the second of four underlying design principle state that smaller
is faster.
-Large number of register may increase
the clock cycle time because it takes electronic signals longer when they must
travel farther.
·
Register is represented by two-character
names following a dollar sign, for example, $s0, $s1, $t0, $t1… etc.
·
The syntax is written as:
op
rd rs1 rs2
op = operation
rd = registered destination
rs 1 and rs 2 = register source 1 and 2
Example:
f = (g + h) – ( i + j)
add $t0, $s1, $s2 # this instruction means $t0 = x , $s1 = g , $s2 = h, x = g + h
add $t1, $s3, $s4 # this instruction means $t1 = y , $s3 = i , $s4 = j , y = i + j
sub $s0, $t0, $t1 # this instruction means $s0 = f , $t0 = x , $t1 = y , f = x + y
Memory
Operands
·

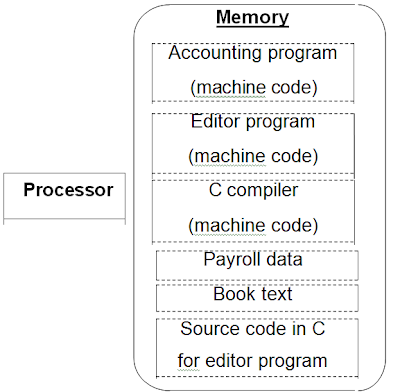

Programming languages also have more
complex data structures-arrays and structures which can contain many more data
elements than there are registers in computer.
·
These complex data structures are kept
in memory.
·
MIPS enable transfer data between memory
and register, this is called data transfer instructions.
·
To access words in memory, instruction
must supply the memory address.
·
Memory is just a large,
single-dimensional array, with address acting as index to the array, starting
at 0.
·
The instruction that copy data from
memory to a register is called load.
·
Format writing load instruction:
(actually MIPS name for it is lw, load word)
-operation
name(lw), then register to be loaded (eg: $s1), then constant and register used
to access memory.
·
Sum of constant portion of instruction
and contents of the second register forms memory address.
·
The compiler allocates data structures
to locations in memory, so that it can place proper starting address into the
data transfer instructions.
·
In MIPS, words must start at addresses
that are multiples of 4, this is called alignment
restriction.
·
This instruction complementary to load is call store, which copy data from a register to memory.
·
The actual name in MIPS is sw, store
word.
·
If a data is not exist in main memory,
it must be load to the register, after having the result from register, store
it in memory.
·
Example:
A[12] = h + A[8]
index
8 require 32 offset, multiply it by 4 as there are 4 bytes per word.
lw $t0, 32 ( $s3 ) #load word
add
$t0, $s2, $t0
sw $t0, 48 ( $s3) #store word
Constant/
immediate operands
·
The constant is added. For example,
1,2,3 etc.
·
The quick add instruction with one
constant operand is called add immediate
or addi.
·
There is no subi.
Example1
:
x
= y + 4
written
as, addi $s3, $s3, 4 # first $s3= x, second $s3 = y
Example2:
x = y – 1
since
there is no subi, so it is written as :
addi
$s3, $s3, -1
·
Immediate instructions illustrate the
third design principle, make the common fast.
-small
constants are common.
-immediate
operand avoid load instruction.
Signed
and unsigned numbers
·
Computer only read numbers of based two,
or, binary digits.
·
Example : 1011 based2 equal to 11
based10.
·
The number of bits are numbered from
right to left.
16 15
14 13
|
12 11
10 9
|
8 7
6 5
|
4 3
2 1
|
0 0
0 0
|
0 0
0 0
|
0 0
0 0
|
1 0
1 1
|
Unsigned
binary integers
x = xn-12n-1 + xn-22n-2 + … + x121 +
x020
·
Numbers have infinite number of digit,
with almost all 0, except for a few of the rightmost digits.
·
Hardware designed to add, subtract,
multiply and divide. If the number cannot be represented by these rightmost
hardware bits, overflow occur.
Signed
Binary Integers
·
Leading 0s means positive, whereas
leading 1s means negative. This convention is called two’s complement
representation.
·
x = - xn-12n-1 + xn-22n-2 + … + x12x + x020
·
After converting the 0 to 1, 1 to 0, add
the words by 1.
·
For example:
+1
= 0000 0000 0000 0000 0000 0000 0000 0001
In
order to get -1, convert it to 1111 1111 1111 1111 1111 1111 1111 1110, then
add 1.
So,
-1= 1111 1111 1111 1111 1111 1111 1111 1111
Reference:
Computer Organization
and Design, by David A. Patterson, John L. Hennessy
Written by,
Quek Xin Yi
B031210203
